How to Measure Openings for Sliding Doors: A Step-by-Step Guide
How to Measure Openings for Sliding Doors: A Step-by-Step Guide by KozijnenPro
Accurate measurements are the foundation of a flawless aluminium (aluminum) sliding door installation. Whether you’re planning a new build with a lift & slide system or replacing an existing patio door, precise dimensions guarantee a smooth slide, tight seal, and long-term performance. Follow this professional step-by-step guide from KozijnenPro to ensure your measurements are correct the first time.
Understanding Key Terms
- Rough Opening: The unfinished structural opening in the wall, measured stud-to-stud (width) and subfloor to header (height).
- Finished Opening: The visible size once plaster, drywall, or cladding is completed.
- Track (Sill): The bottom rail on which the door panels slide; must be level for smooth operation.
- Head: The top horizontal frame part that supports rollers and guides.
- Interlock: The vertical joining point between sliding panels.
- Drainage Slot: Openings in the lower track that channel water away from the frame.
- Tolerance Gap: The 10–15 mm (3/8–5/8 in) clearance left around the frame for shimming and insulation.
Needed tools shown on a table.
Tools You’ll Need
- Tape measure (5 m / 16 ft) or digital laser measurer
- Spirit level or laser level
- Pencil or masking tape
- Notebook or phone for recording measurements
- Optional: a helper for wide openings
Step 1 — Identify the Door Type and Scenario
First, determine whether you are measuring for a standard sliding door or a lift & slide system. Lift & slide doors require tighter tolerances because of their precision rollers and lift mechanisms. Also note whether the measurement is for new construction (rough opening) or a replacement (finished opening). The method below applies to both, with minor adjustments in tolerance.

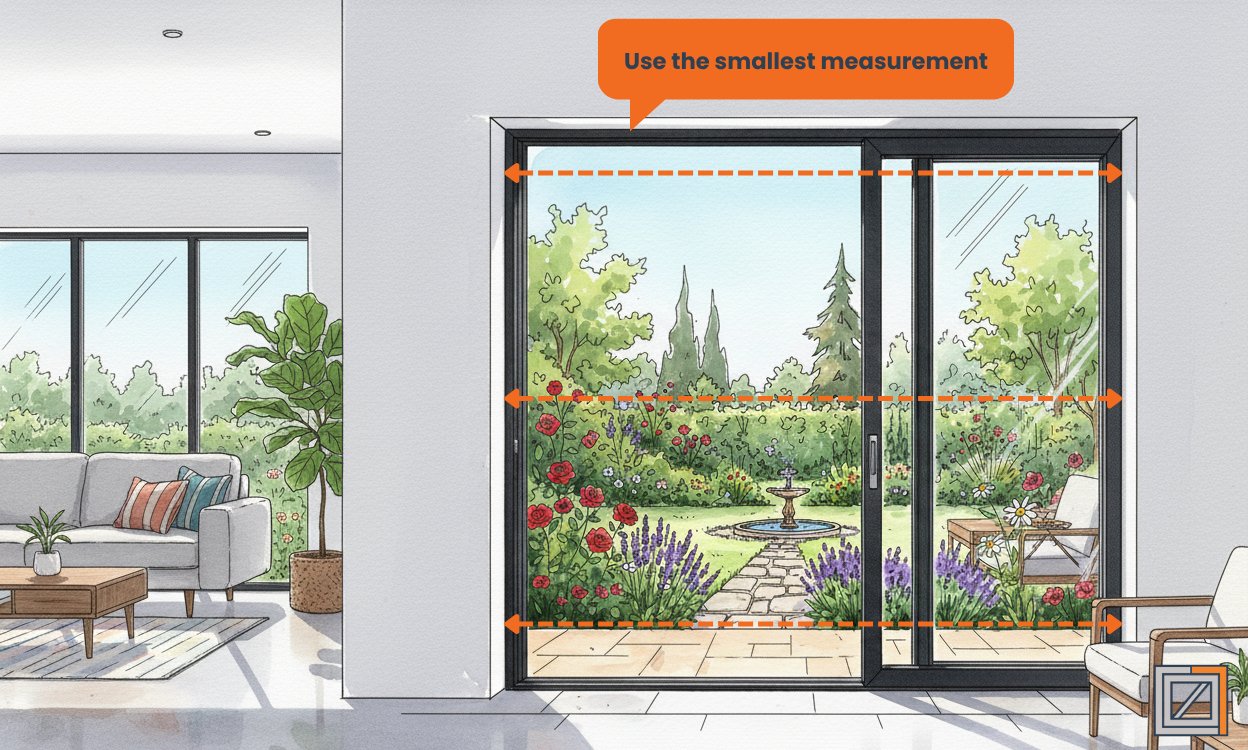

Image showing the width of a sliding door opening.
Step 2 — Measure the Width
Measure between the left and right reveals or studs at the top, middle, and bottom of the opening. Write down all three readings and use the smallest as your reference width. If your track area is already installed, measure above the sill line, ensuring you avoid decorative trims or plaster edges. For double-track or triple-track systems, measure across the entire frame width, not just one panel lane.
Image showing the height of a sliding door opening.
Step 3 — Measure the Height
Measure from the subfloor or track base to the underside of the header at three points — left, center, and right. Use the smallest dimension. If you’re adding flooring (tile, wood, or vinyl), subtract its thickness from the measurement to maintain proper clearance between door panels and finished floor.

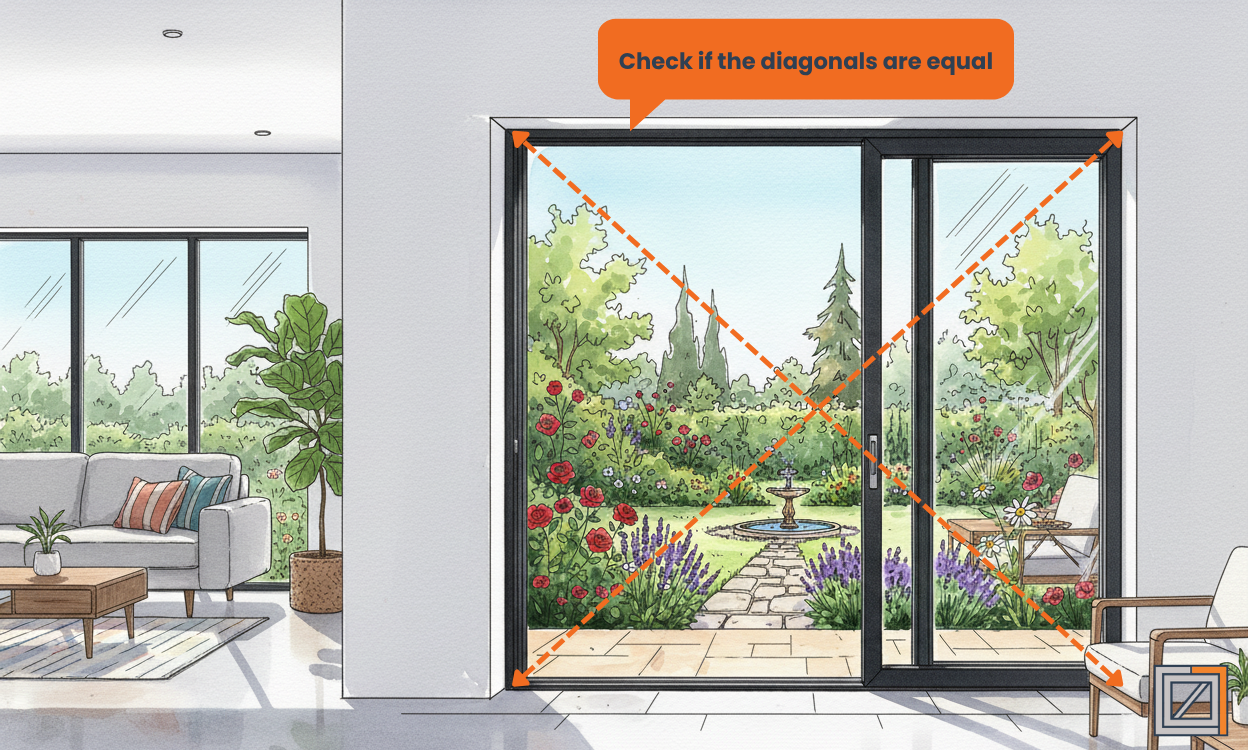

Image showing the diagonals of a sliding door opening.
Step 4 — Check for Squareness
Measure both diagonals of the opening (top-left to bottom-right and top-right to bottom-left). If the difference exceeds 6 mm (1/4 in), the opening isn’t square. Slight differences can be corrected with shims; larger ones should be corrected structurally. A square opening ensures that the door panels align perfectly with the tracks and lock smoothly.
Step 5 — Check Track Levelness and Head Alignment
Use a laser level or long spirit level across the sill track to confirm it is straight and level end-to-end. Check the head (top) for the same alignment. Even a small unevenness can cause sliding panels to drift or rub, especially in lift & slide systems where the rollers must stay parallel. Note any variation — installers can adjust with packers or leveling compound if necessary.
Step 6 — Record and Apply Tolerance
Deduct around 10–15 mm (3/8–5/8 in) from your smallest measured width and height to calculate the manufacturing size. This allows for insulation foam and expansion during temperature changes. Example: measured width 3000 mm × height 2400 mm → order size approximately 2985 × 2385 mm.
Step 7 — Document and Verify
- Record each dimension clearly and label location (e.g., “Living Room – South Façade”).
- Note the sill type (standard, low-profile, flush).
- Confirm number of tracks (2-track, 3-track) and panel direction (left-slide, right-slide, both-way).
- Photograph each opening for installation reference.
Measure once, configure with precision. Enter your dimensions into the KozijnenPro Configurator to design and price your custom aluminium sliding doors instantly.
Common Mistakes to Avoid
- Measuring from finished plaster or decorative edges instead of structural surfaces.
- Ignoring track levelness — even minor slopes affect roller alignment.
- Forgetting to deduct floor finish thickness.
- Failing to confirm drainage allowance under the sill.
- Providing frame size instead of rough opening size when ordering.
Regional Notes
In Europe, sliding doors are measured in millimetres with 10–15 mm tolerance gaps. In North America, doors are often advertised in nominal inches (e.g., 108" × 94"), with the rough opening slightly larger than the frame.
Conclusion
By following this guide, you’ll obtain precise measurements for your aluminium sliding or lift & slide door system — ensuring smooth operation, proper sealing, and effortless installation. At KozijnenPro, every door is engineered to your measurements using advanced manufacturing technology for accuracy, durability, and energy efficiency.
FAQ: Measuring Sliding Door Openings
In most cases, always measure from the inside of the building. Interior surfaces are easier to access and generally straighter than exterior masonry or cladding. Measuring from the inside ensures you reference the true structural dimensions — the surfaces where the frame will actually be anchored.
However, if your supplier requests “brick-to-brick” or “outside reveal” measurements, take both inside and outside readings and clearly label them. European installations often require external dimensions for masonry reveals, while North American projects typically rely on interior rough opening sizes. Providing both eliminates confusion and ensures your new aluminium (aluminum) sliding door fits perfectly.
For professional installation, your aluminium sliding or lift & slide frame should be 10–15 millimeters (⅜–⅝ inch) smaller than your measured structural opening on all sides.
This tolerance gap provides room for shimming, insulation foam, and expansion due to temperature changes. It also lets the installer perfectly level and plumb the frame without forcing it into place.
Ordering a door the same size as the opening leaves no installation clearance — which can cause the frame to warp or bind when temperature or humidity shifts.
Uneven sills are common, especially in renovated buildings. Always check the sill or track area with a spirit or laser level.
If one end of the sill is higher, measure from the highest point, the point that measures the least amount — installers can raise a door slightly with packers, but cannot lower it once built.
For lift & slide systems, even a 3–4 mm difference in sill height can cause panels to slide unevenly or drift open. If you notice more than 5 mm difference, your contractor may need to apply self-leveling compound or adjust the subfloor before installation. Levelness ensures smooth operation and proper water drainage through the sill.
If replacing an existing door, measure inside the current frame, between the vertical jambs (for width) and from sill to head (for height).
Take readings at three points — top, middle, and bottom — and record the smallest values.
If possible, remove any interior trims before measuring to expose the true frame edge.
Also check whether the current frame sits flush with the wall reveal or inset into plaster — this can slightly change the new frame dimensions.
Measure both diagonals — from top-left to bottom-right and top-right to bottom-left.
If the difference is less than 6 mm (¼ inch), it’s acceptable and can be corrected during installation.
If it exceeds that, the frame won’t sit evenly and the panels may not lock or seal properly.
For large lift & slide systems, even small diagonal differences can cause binding.
The solution is simple: note the deviation on your measurement sheet and inform your installers. The technical team can adjust the frame tolerances or guide you on how to shim the installation area.
Most homeowners can measure their own openings accurately using a tape measure, level, and careful recording — especially when following this guide.
However, for oversized openings (over 3 meters wide), multi-track systems, or structurally recessed thresholds, it’s wise to have measurements verified by a professional before production.
The most frequent mistakes include:
Measuring from plaster or decorative trim instead of the structural reveal.
Forgetting to measure in three places (top, middle, bottom) and taking only one reading.
Ignoring diagonal checks for squareness.
Overlooking the floor buildup or finished floor height.
Providing outside dimensions when the supplier expects inside measurements.
Forgetting to note the track type or drainage level.
Mixing up millimeters and centimeters or converting imprecisely to inches.
Avoiding these errors ensures a perfect fit the first time — saving days of adjustment work and preventing installation issues.
Accuracy is everything — especially with aluminium systems, which have tight tolerances. Aim to measure to the nearest millimeter (or 1/16 inch). Avoid rounding up, as it’s safer to have a slightly smaller door with shim space than one that doesn’t fit. Double-check your notes and always label which measurement corresponds to which sliding door. The old saying “measure twice, cut once” applies perfectly here: it’s better to spend extra time verifying your numbers than to face an expensive resizing later.
